Industrial Linear Accelerator

LINASEC® Linear Accelerator System is designed for special Non Destructive Testing (NDT) applications and for usage in scanning devices for cargo and vehicles inspection at ports and borders. LINASEC® System is All-in-One system, which includes all necessary components, the Linear accelerator, RF generator, high frequency modulator, HVPS, shielding, power supplies, interfaces. SEC’s accelerator product line consists of a broad range of S-band accelerators providing a variety of doses, energies, and focal spot sizes. For security application that requires material decimation, SEC offers dual energy interlaced accelerator at 6MeV and 9MeV.

  • All-in-one Structure system for easy installation & space-saving, simplifying cabling

  • Advanced energy selection for wide range of applications and samples

  • Adjustable operation scheme

  • SEC Industrial Linear Accelerator

4500M_plus_SEM-onlyheader

Specifications

LINASEC Series

DescriptionProduct NameSM03SM06SM09SK15
GENERATOREnergy(Photon)
Dose rate
spot size
Operating Frequency
RF Power & Source
RF Pulse Length
Beam Pulse Length
PRF (Pulse Repetition Frequency)
Beam Flatness
HVL(in)
Radiographic Quality Range(mm)
1/2/3 (MV)
0.25/2/3 (Gy/min-m)
<2 mm (FWHM)
2998 ± 2 MHz(π/2-mode)
3.1MW (Magnetron)
1~5㎲
1~3.5㎲
Up to 300Hz
≥72.5%@±7.5°
0.91
38~203
3.5/5/6 (MV)
2.5/5/8 (Gy/min-m)






≥62%@±7.5°
1.1
51~254
5/6/9 (MV)
6/10/30 (Gy/min-m)






≥55%@±7.5°
1.18
76~381
9/15 (MV)
50/140 (Gy/min-m)


5.5MW (klystron)
5㎲
3.5㎲

≥45%@±6°
1.25*
254~460
POWERElectrical Power
Current
TCU Pressure(Operating)
TCU Temperature(Operating)
380VAC 3Ø
50A/18A (TCU)
4~6 bar
15~40°C
ENVIRONMENTStorage temperature
Humidity
Protection class(IP rating)
Leakage(fraction)
10~40°C
10~85%
66
1 x 10-3

LINASEC CIS 9 & 6 (Cargo & Vehicle Inspection system)

DescriptionTypeElectron Linear Accelerator
GENERAL SPECIFICATIONNominal Energy
Scanning Principle
9 MeV(6 MeV)
Container or Vehicle is transported via conveyor through X-ray Scanning system
SYSTEM SPECIFICATIONInspection Throughput
Minimum Crew Requirement
Max. Dose Rate
Spot Size
Penetration(Steel)
10 trucks / Hour (Maximum)
1 Image Operator, 1 System Operator & 1 Check in Operator
30.0Gy/min-m(8Gy/min-m)
≤2 mm
430mm(340mm)
DETECTOR SPECIFICATIONType
Photodiode Size
Vertical Detector Pitch
ADC Depth
Penetration(Steel)
Vertical Structure
Linear Diode Array
4 x30(mm)
4.6mm
CdWO4
18bit
Curved
IMAGE PROCESSING & HARDWAREImage Analysis
Data base workstation
Hardware
Contrast & Edge enhancement, Filters, Marks, Annotations, Histogram Equalization, Review of Image, Image Conversion to standard format, Object measurement, Zoom & window images, Brightness & Contrast change, and etc
SQL Database
Dual-Core CPU at least 2.3 GHz, System memory
at least 4 GB, Gigabit Ethernet Network Interface Card.
RADIATION PROTECTION SAFETYSafety Area(WxL)
Surveillance
Regulations
Dose in the environment
20 x 38(m)
Video Surveillance six color CCTV
In compliance with WHO, ICRP 103

Less than 1 uSv/hour
HEALTH & SECURITYDose in the environment
Dose rate in operator cabin
Less than 1 uSv/hour

Less than 1 uSv/hour
BUILDING FEATURESBuilding Parts
Installation footprint
Scanning height
Scanning building, Operators premises, Technical rooms & Spare parts storage room
20 x 38(m)
4.7m
OTHEREducation & TrainingTechnical training to be provided for 1 year(2 persons) by KAERI(Korea Atomic Energy Research Institute)

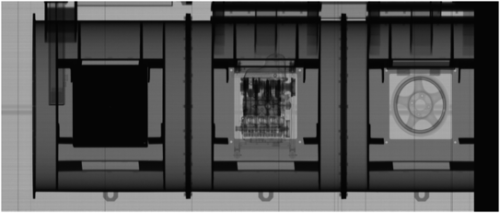

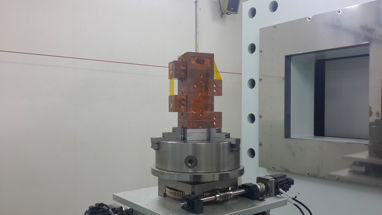

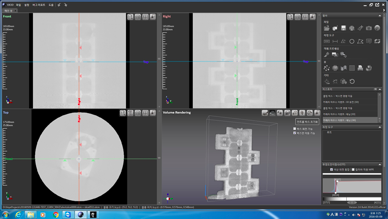

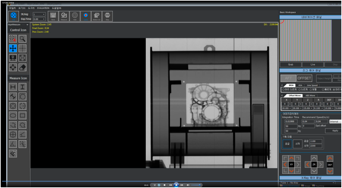

Application
